Reed Instruments

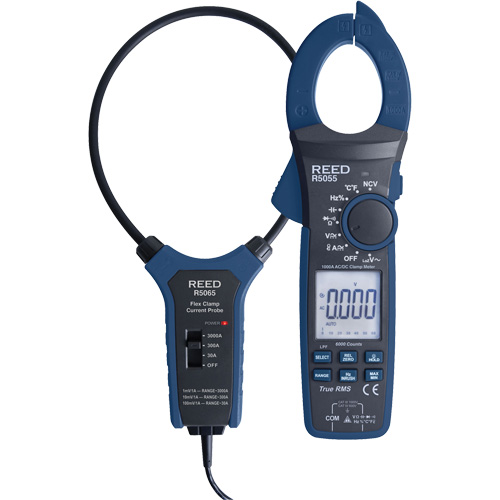

True RMS Clamp Meter with Flexible Current Probe & ISO Certificate, AC/DC Voltage, AC/DC Current

Model: IC790

Mfr. No.: R5055-KIT-NIST

  • True RMS Clamp Meter with Flexible Current Probe & ISO Certificate, AC/DC Voltage, AC/DC Current Waymarc Industries Inc

Colour, sizing or style depicted in some photos may not be exactly as described.
Please check your product description carefully before placing your order.

$509.00 / Each

0 In Stock

Voltage Readings

AC/DC

Current Readings

AC/DC

AC/DC Current Range

60, 600, 1000A

AC/DC Current Accuracy

AC/DC: ±(2% rdg. +5 dgt.)

AC/DC Current Resolution

0.01, 0.1, 1A

Resistance Range

600Ω, 6, 60, 600kΩ, 6, 60MΩ

Resistance Accuracy

±(1% rdg. +2 dgt.) 0.1Ω, 0.001kΩ, 0.01kΩ, 0.1kΩ, 0.001MΩ, 0.01MΩ

Capacitance Range

60, 600.0nF, 6, 60, 600µF, 6, 60mF

Capacitance Accuracy

±(4.0% rdg. +5 dgt.)

Capacitance Resolution

0.01nF, 0.1nF, 0.001μF, 0.01μF, 0.1μF, 0.001mF, 0.01mF

Dimensions

10.7" x 3.2" x 1.7" (272 x 81 x 43.5mm)

  • Measures AC/DC current and voltage, resistance, capacitance, frequency, duty cycle, and contact temperature
  • Comes equipped with an 18" flexible current probe that can expand AC current measurements up to 3000A
  • 6000-Count backlit LCD display and analog bargraph plus built-in non-contact voltage detector with LED indicator
  • Ergonomic design fits in your hand and can be used while wearing protective gloves and only weighs 15.8oz (447g)
  • Built-in LED flashlight, durable double molded plastic housing, and low battery and over range indicators
  • True RMS voltage and current for accurate measurements
  • Low pass filter and low impedance (LoZ) modes
  • Min/Max, display hold and relative mode
  • Diode test and continuity check functions
  • Cat. III 1000V, Cat. IV 600V safety rating
  • Operating temperature of 32 to 122°F (0 to 50°C) and a storage temperature of 14 to 140°F (-10 to 60°C)
  • Runs on 3 x AAA batteries and features an autoshut-off after 15 minutes
  • CE and ETL product certifications
  • AC/DC voltage range: 6, 60, 600, 1000V (AC), 600mV, 6, 60, 600, 1000V (DC)
  • AC/DC voltage accuracy: ±(1.0% rdg. +8 dgt.) (AC), ±(0.5% rdg. +5 dgt.) (DC)
  • AC/DC voltage resolution: 0.1mV, 0.001V, 0.01V, 0.1V, 1V
  • Includes: REED 1000A True RMS digital clamp meter (R5055), REED 3000A Flexible 18" current probe (R5065), ISO Certificate with full data and uncertainties
  • Items with calibration certificates are non-returnable and non-refundable due to the limited validity of the certification
