Vibrasystems

Anti-Vibration Cupmounts

Model: UD185

Mfr. Model No.: VSCM-1

Colour, sizing or style depicted in some photos may not be exactly as described.
Please check your product description carefully before placing your order.

$123.00 / Each

0 In Stock

  • Overall Length: 6"
  • Overall Height: 1-3/8"
  • Maximum load in lbs. Non-Impact Machinery: 400
  • Maximum load in lbs. Impact Machinery: 250

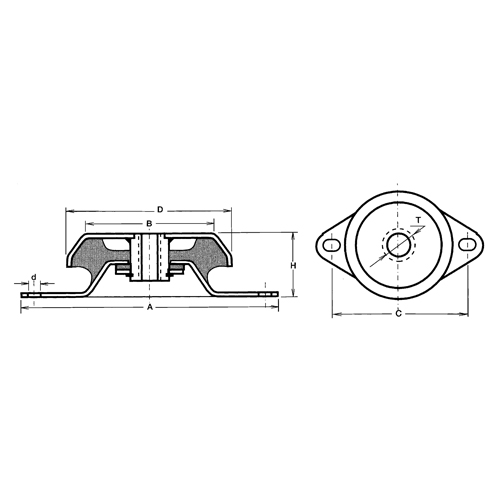

  • Mount dimensions in inches A: 6
  • Mount dimensions in inches B: 2.75
  • Mount dimensions in inches C: 5
  • Mount dimensions in inches D: 3.625
  • Mount dimensions in inches H: 1.375
  • Mount dimensions in inches T: 41276
  • High vibration dampening characteristics
  • Fail-safe, rugged interlocking metal and neoprene construction provides exceptional performance against shear and compression forces and flexible vertically and stable horizontally
  • Metal cupmount component is cold-rolled steel coupled with an elastomer-in-compression design
  • High-grade neoprene elastomer provides resistance to oil and ozone
  • Each side flange has through holes allowing for effective attachment to supporting equipment structure
